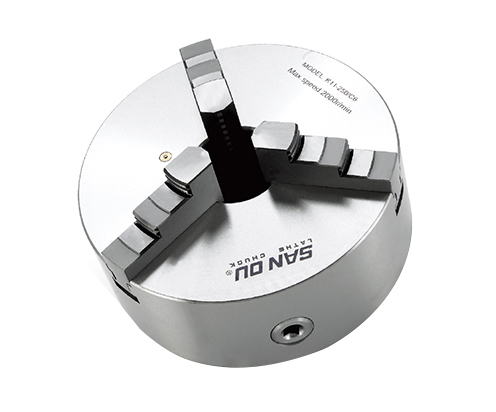

K11短锥三爪自定心卡盘

特征:

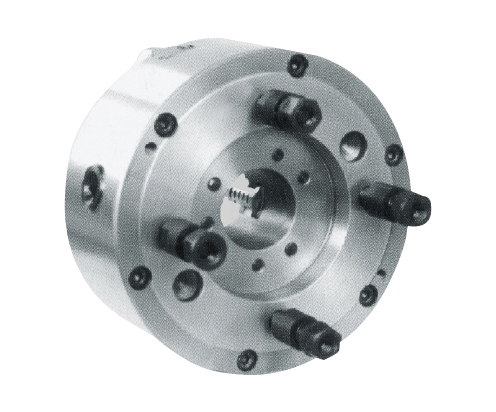

C型 拨盘、螺栓锁紧连接

咨询报价

参数表

规格 D D1 D2 D3 D4 H1 h h1 h2 d1 z-d Net WT
kg
125/C3 125 53.975 75 30 102 63 13 10 - - 3-M10 30
125/C4 125 63.513 85 30 112 63 13 10 6.5 14.7 3-M10 30
160/C3 160A/C3 160 53.975 75 40 102 76 13 10 - - 3-M10 10
160/C4 160A/C4 160 63.513 85 40 112 70 13 10 6.5 14.7 3-M10 10
160/C5 160A/C5 160 82.563 104.8 40 135 73 15 12 6.5 16.3 4-M10 10
200/C4 200C/C4 200A/C4 200 63.513 85 50 112 84 13 10 6.5 14.7 3-M10 17
200/C5 200C/C5 200A/C5 200 82.563 104.8 50 135 84 15 12 6.5 16.3 4-M10 17
200/C6 200C/C6 200A/C6 200 106.375 133.4 65 170 84 16 13 6.5 19.5 4-M12 17
250/C5 250C/C5 250A/C5 250 82.563 104.8 80 135 95 15 12 6.5 16.3 4-M10 30
250/C6 250C/C6 250A/C6 250 106.375 133.4 80 170 95 16 13 6.5 19.5 4-M12 30
250/C8 250C/C8 250A/C8 250 139.719 171.4 80 220 95 18 14 8 24.2 4-M16 30
325/C6 325C/C6 325A/C6 325 106.375 133.4 100 170 103.5 16 13 6.5 19.5 4-M12 53
325/C8 325C/C8 325A/C8 325 139.719 171.4 105 220 106 18 14 8 24.2 4-M16 53
325/C11 325C/C11 325A/C11 325 196.869 235 105 290 106 20 16 10 29.4 6-M20 53
380C/C8 380A/C8 380 139.719 171.4 130 220 118 18 14 8 24.2 4-M16 79
380C/C11 380A/C11 380 196.869 235 135 290 118 20 16 10 29.4 6-M20 79
380/C8 500D/C11 500 196.869 235 190 290 135 20 16 10 29.4 6-M20 159
380/C11 500D/C15 500 285.775 330.2 210 400 135 20 17 10 35.7 6-M24 159
630/C11 630A/C11 630 196.869 235 190 290 150 20 16 10 29.4 6-M20 312
630/C15 630A/C15 630 285.775 330.2 210 400 150 21 17 10 35.7 6-M24 312
800A/C15 800 285.775 330.2 281.5 400 21 17 10 35.7 6-M24 -
800A/C20 800 412.775 463.6 385 540 23 19 10 42.1 6-M24 -
